Multilayer ceramic capacitor with 3.3pF capacitance and 50V DC rating. Features C0G dielectric, 0402 (1005 metric) SMD package, and a maximum operating temperature of 125°C. Designed for surface mount applications with low ESR and lead-free, RoHS-compliant termination.
Package0402
Voltage50V
Capacitance3.3pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata GJM1555C1H3R3CB01D technical specifications.
General
Capacitance
3.3pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.5mm
Dielectric
C0G
Height
0.5mm
Lead Free
Lead Free
Length
1mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
GJM
Termination
SMD/SMT
Thickness
0.022inch
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata GJM1555C1H3R3CB01D Datasheet
Download the complete datasheet for Murata GJM1555C1H3R3CB01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

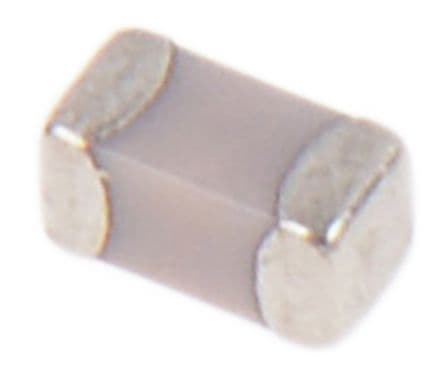

Product Images
