Multilayer Ceramic Capacitor (MLCC) with 5.6pF capacitance and 50V DC rating. Features C0G dielectric for stable performance across temperature, operating from -55°C to 125°C. Housed in a compact 0402 (1005 metric) surface mount package with dimensions of 1mm length, 0.5mm width, and 0.5mm height. Packaged in tape and reel for automated assembly.
Package0402
Capacitance5.6pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GJM1555C1H5R6BB01D technical specifications.
General
Capacitance
5.6pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Flat
Depth
0.5mm
Dielectric
C0G
Height
0.5mm
Lead Pitch
0.3mm
Length
1mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GJM
Termination
SMD/SMT
Thickness
0.022inch
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata GJM1555C1H5R6BB01D Datasheet
Download the complete datasheet for Murata GJM1555C1H5R6BB01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

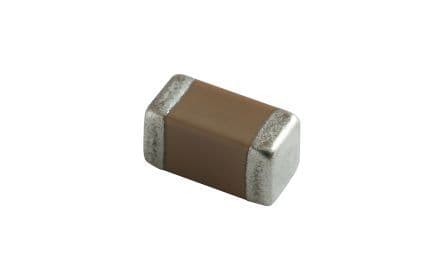

Product Images
