Murata
GRM0335C1H121JA01D
Capacitor, Ceramic, Chip, General Purpose, 120pF, 50V, ±5%, C0G/NP0, 0201 (0603 mm), 0.012"T, -55º ~ +125ºC, 7" Reel/Paper Tape
Package0201
Capacitance120pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM0335C1H121JA01D technical specifications.
General
Capacitance
120pF
Case Code (Imperial)
0201
Case Code (Metric)
0603
Package/Case
0201
Dielectric
C0G
Height
0.3mm
Lead Free
Lead Free
Length
0.024inch
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.013inch
Tolerance
5%
Voltage Rating
50V
DC Rated Voltage
50V
Weight
1.2E-05oz
Width
0.012inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM0335C1H121JA01D Datasheet
Download the complete datasheet for Murata GRM0335C1H121JA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

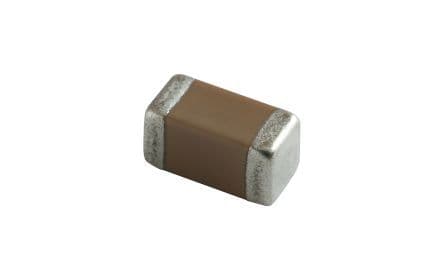

Product Images
