Multilayer Ceramic Capacitor (MLCC) with 5.6pF capacitance and 50V voltage rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Packaged in a compact 0402 (1005 metric) surface-mount case with lead-free termination. Designed for tape and reel packaging, this RoHS compliant component offers a flat construction with dimensions of 1mm length, 0.5mm width, and 0.5mm height.
Package0402
Voltage50V
Capacitance5.6pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata GRM1555C1H5R6CA01D technical specifications.
General
| Capacitance | 5.6pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | C0G |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 4mm |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM1555C1H5R6CA01D Datasheet
Download the complete datasheet for Murata GRM1555C1H5R6CA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

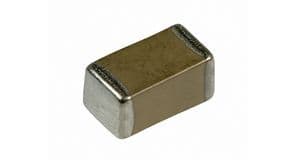

Product Images
