Multilayer Ceramic Capacitor (MLCC) with 22pF capacitance and 100V DC rating. Features C0G dielectric, 5% tolerance, and a 0603 (1608 metric) surface mount case code. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free. Packaged in tape and reel.
Package0603
Voltage100V
Storage0.8mm
Capacitance22pF
Quick Jump:
Technical Specifications
Murata GRM1885C2A220JA01D technical specifications.
General
Capacitance
22pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
C0G
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Size
0.8mm
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
5%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM1885C2A220JA01D Datasheet
Download the complete datasheet for Murata GRM1885C2A220JA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

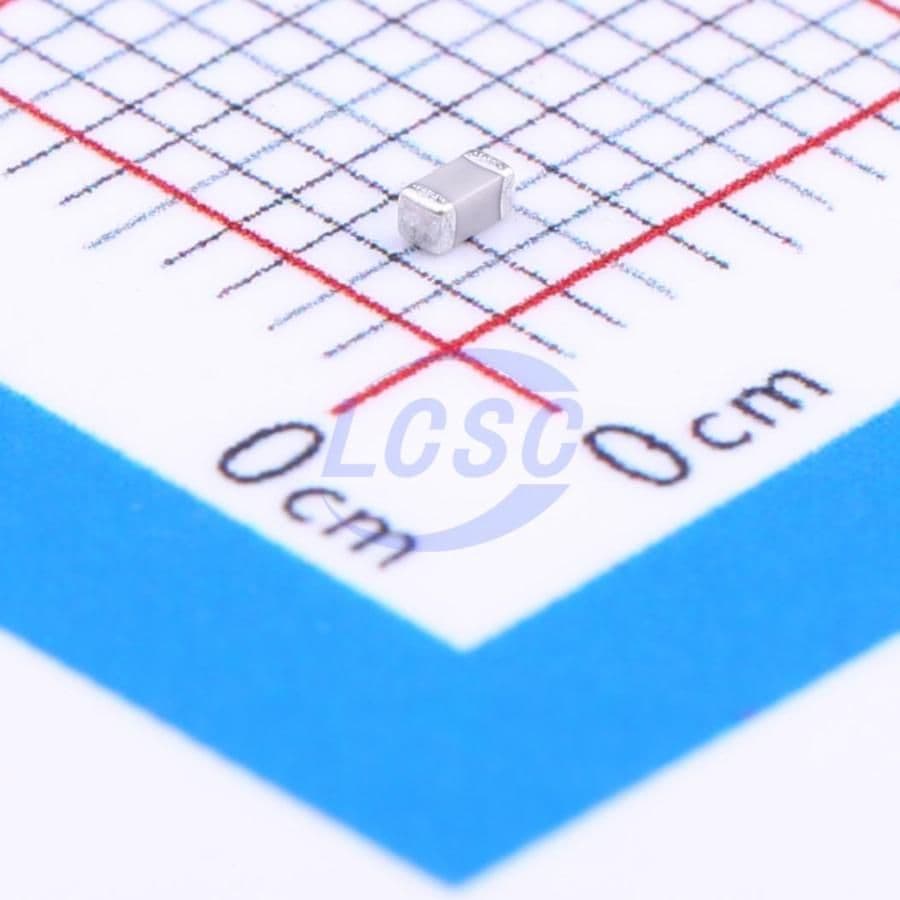

Product Images
