Multilayer Ceramic Capacitor (MLCC) with 2.2µF capacitance and 10V DC rated voltage. Features X5R dielectric and 20% tolerance, housed in a 0603 (1608 metric) surface mount package. Operating temperature range from -55°C to 85°C. RoHS compliant and lead-free.
Package0603
Voltage10V
Capacitance2.2uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Murata GRM188R61A225ME34D technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
X5R
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.035inch
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Weight
7.1E-05oz
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Murata GRM188R61A225ME34D Datasheet
Download the complete datasheet for Murata GRM188R61A225ME34D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

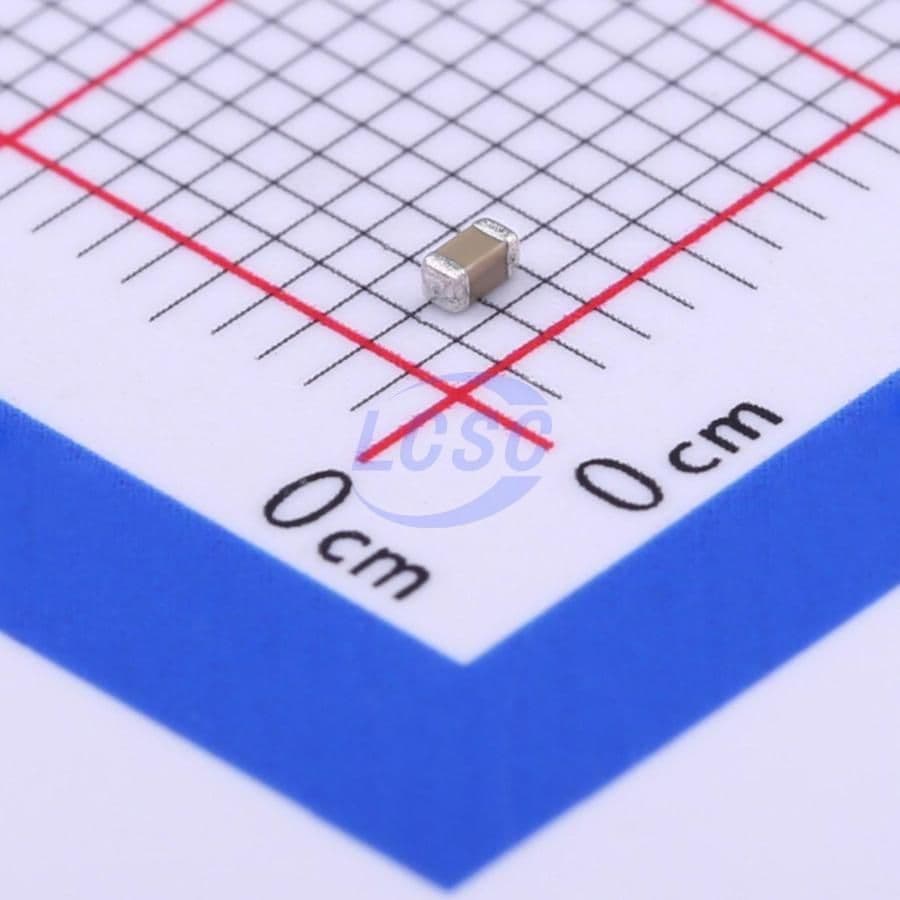

Product Images
