Multilayer ceramic capacitor with 2.2µF capacitance and 25V DC rated voltage. Features X5R dielectric with a ±15% temperature coefficient. This surface mount component is housed in a 0603 (1608 metric) case code, measuring 1.6mm in length, 0.8mm in width, and 0.8mm in height. Operating temperature range is -55°C to 85°C, with a ±10% tolerance. RoHS compliant and lead-free.
Package0603
Voltage25V
Capacitance2.2uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Murata GRM188R61E225KA12D technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X5R |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 0.000222oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM188R61E225KA12D Datasheet
Download the complete datasheet for Murata GRM188R61E225KA12D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

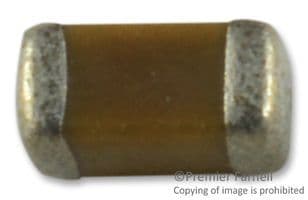

Product Images
