220pF 50V X7R multilayer ceramic capacitor with 10% tolerance, housed in a 0603 (1608 metric) surface mount package. Features a ceramic dielectric and tin/lead-free termination, operating across a -55°C to 125°C temperature range. This component is supplied on tape and reel for automated assembly.
Package0603
Voltage50V
Storage0.8mm
Capacitance220pF
Quick Jump:
Technical Specifications
Murata GRM188R71H221KA01D technical specifications.
General
| Capacitance | 220pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X7R |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Size | 0.8mm |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM188R71H221KA01D Datasheet
Download the complete datasheet for Murata GRM188R71H221KA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

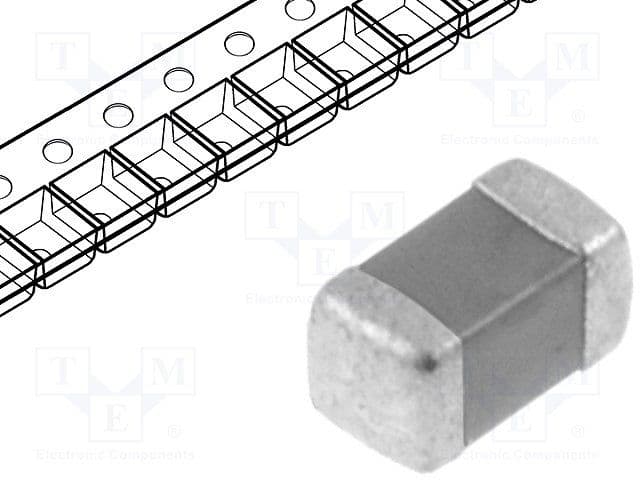

Product Images
