Multilayer ceramic capacitor with 4.7µF capacitance and 25V DC rated voltage. Features Y5V dielectric, offering a wide tolerance of -20% to 80%. Surface mountable in an 0805 (2012 metric) case code, with dimensions of 2mm length, 1.25mm width, and 1.25mm height. Operates within a temperature range of -30°C to 85°C and is RoHS compliant.
Package0805
Voltage25V
Capacitance4.7uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Murata GRM21BF51E475ZA01L technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | Y5V |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.053inch |
| Tolerance | 80% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM21BF51E475ZA01L Datasheet
Download the complete datasheet for Murata GRM21BF51E475ZA01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

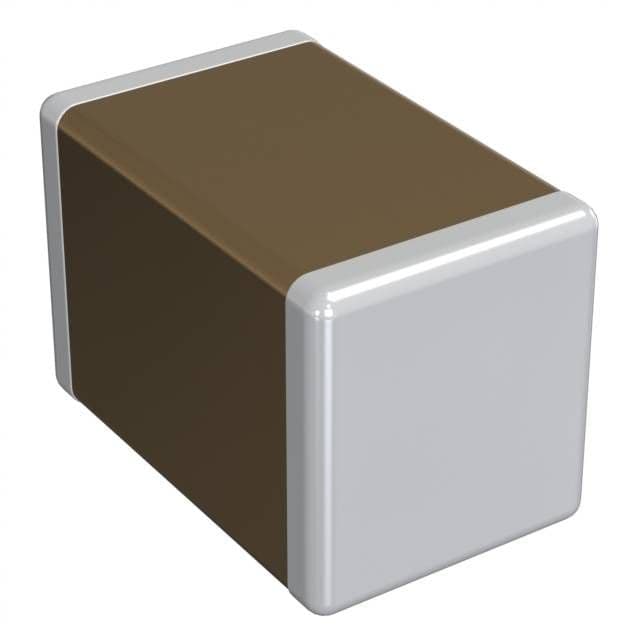

Product Images
