Multilayer Ceramic Capacitor (MLCC) with 3.3µF capacitance and 25V DC rated voltage. Features X5R dielectric, 10% tolerance, and a 0805 (2012 metric) surface mount case code. Operating temperature range from -55°C to 85°C. Lead-free and RoHS compliant, supplied on tape and reel.
Package0805
Voltage25V
Capacitance3.3uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Murata GRM21BR61E335KA12L technical specifications.
General
| Capacitance | 3.3uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X5R |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.053inch |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM21BR61E335KA12L Datasheet
Download the complete datasheet for Murata GRM21BR61E335KA12L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

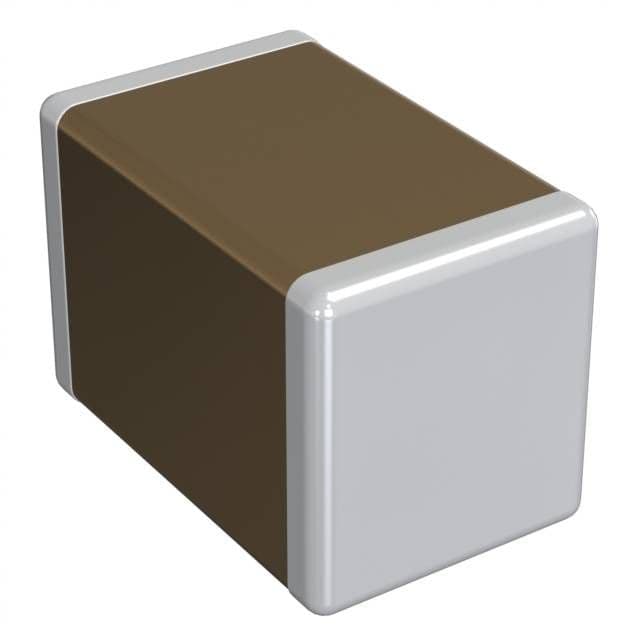

Product Images
