Multilayer ceramic capacitor with 3.3µF capacitance and 25V DC rating. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) SMD package. Operates from -55°C to 125°C and is RoHS compliant. Supplied in tape and reel packaging.
Package0805
Capacitance3.3uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM21BR71E335KA73L technical specifications.
General
| Capacitance | 3.3uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.053inch |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM21BR71E335KA73L Datasheet
Download the complete datasheet for Murata GRM21BR71E335KA73L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

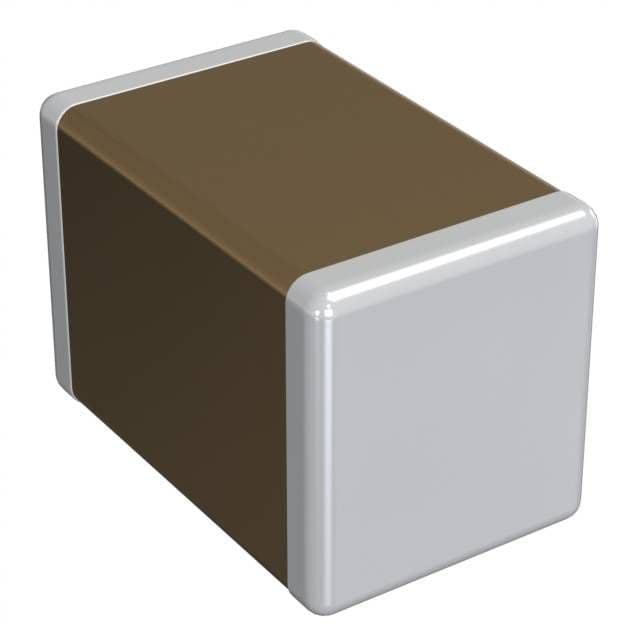

Product Images
