Multilayer Ceramic Capacitor (MLCC) with 33nF capacitance and 50V DC rated voltage. Features a 5% tolerance and C0G dielectric for stable performance. Surface mountable in a 1206 (3216 metric) case code, measuring 3.2mm x 1.6mm x 0.85mm. Operating temperature range from -55°C to 125°C, supplied on tape and reel.
Package1206
Voltage50V
Capacitance33nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata GRM3195C1H333JA01D technical specifications.
General
Capacitance
33nF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Diameter
3.2mm
Dielectric
C0G
Height
0.85mm
Length
3.2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.037inch
Tolerance
5%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.000571oz
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM3195C1H333JA01D Datasheet
Download the complete datasheet for Murata GRM3195C1H333JA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

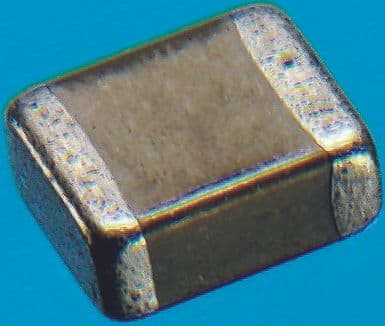

Product Images
