Multilayer Ceramic Capacitor (MLCC) with 10µF capacitance and 16V DC rated voltage. Features X6S dielectric, 10% tolerance, and a 1206 (3216 metric) surface mount case code. Operating temperature range from -55°C to 105°C. Supplied in tape and reel packaging.
Package1206
Voltage16V
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Murata GRM319C81C106KA12D technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric
X6S
Height
0.85mm
Lead Pitch
1.5mm
Length
3.2mm
Material
Ceramic
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.037inch
Tolerance
10%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM319C81C106KA12D Datasheet
Download the complete datasheet for Murata GRM319C81C106KA12D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

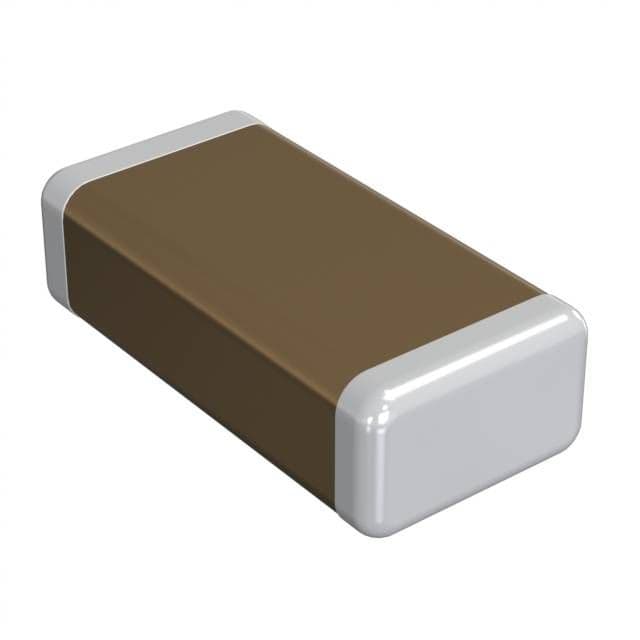

Product Images
