Multilayer Ceramic Capacitor (MLCC) with 470pF capacitance and 1kV voltage rating. Features U2J dielectric material and a 5% tolerance. Constructed with ceramic in a 1206 (3216 metric) surface mount package, measuring 3.2mm length, 1.6mm width, and 1.25mm height. Operates across a temperature range of -55°C to 125°C and is RoHS compliant.
Package1206
Voltage1kV
Capacitance470pF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Murata GRM31B7U3A471JW31L technical specifications.
General
Capacitance
470pF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric
U2J
Dielectric Material
Ceramic
Height
1.25mm
Lead Free
Lead Free
Length
3.2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.049inch
Tolerance
5%
Voltage
1kV
Voltage Rating
1kV
DC Rated Voltage
1kV
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Murata GRM31B7U3A471JW31L Datasheet
Download the complete datasheet for Murata GRM31B7U3A471JW31L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

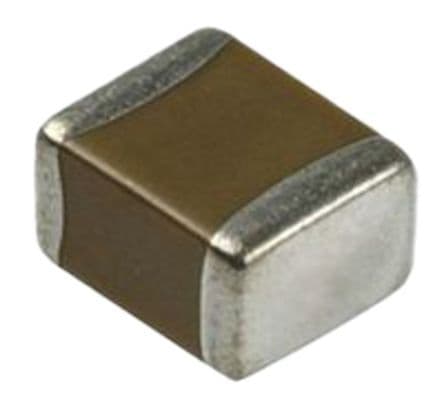

Product Images
