Surface mount ceramic capacitor, 0.1µF capacitance, 25V voltage rating, and ±5% tolerance. Features C0G dielectric for stable performance across a -55°C to +125°C operating temperature range. Packaged in a 1206 (3216 metric) case with a thickness of 1.6mm. Lead-free and RoHS compliant.
Package1206
Voltage25V
Capacitance100nF
Voltage Rating25V
Quick Jump:
Technical Specifications
Murata GRM31C5C1E104JA01L technical specifications.
General
Capacitance
100nF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric
C0G
Dielectric Material
Ceramic
Height
1.6mm
Lead Free
Lead Free
Length
3.2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.071inch
Tolerance
5%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM31C5C1E104JA01L Datasheet
Download the complete datasheet for Murata GRM31C5C1E104JA01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

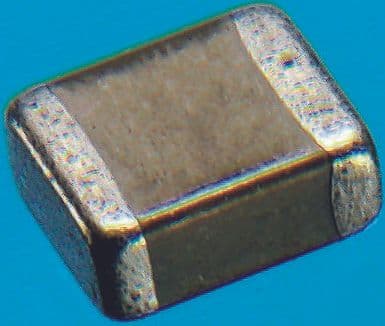

Product Images
