Multilayer Ceramic Capacitor (MLCC) with 47µF capacitance and 6.3V DC rated voltage. Features X6S dielectric, 10% tolerance, and a 1206 (3216 metric) SMD/SMT package. Operating temperature range from -55°C to 105°C. RoHS compliant and supplied on tape and reel.
Package1206
Voltage6.3V
Capacitance47uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Murata GRM31CC80J476KE18L technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X6S |
| Height | 1.6mm |
| Length | 3.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.071inch |
| Tolerance | 10% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM31CC80J476KE18L Datasheet
Download the complete datasheet for Murata GRM31CC80J476KE18L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

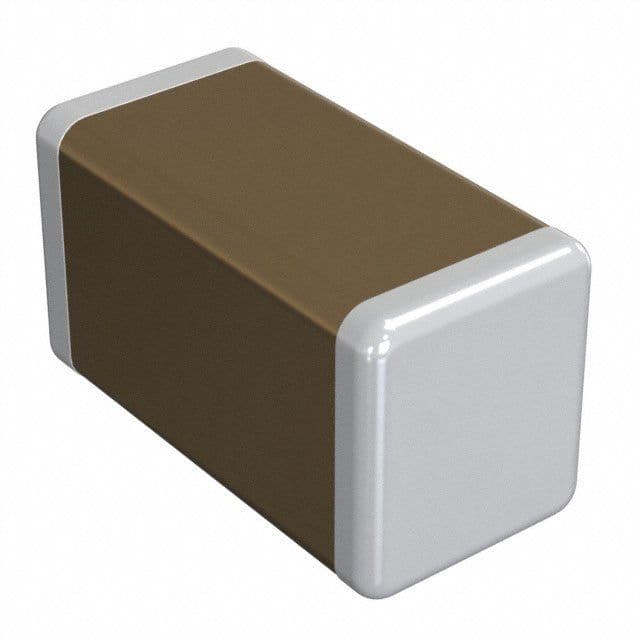

Product Images
