Multilayer Ceramic Capacitor (MLCC) with 22µF capacitance and 16V DC rated voltage. Features X5R dielectric, 10% tolerance, and a 1206 (3216 metric) surface mount case code. Operates from -55°C to 85°C, constructed with ceramic material and SMD/SMT termination. Packaged in tape and reel, this lead-free component is RoHS compliant.
Package1206
Voltage16V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Murata GRM31CR61C226KE15L technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X5R |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.071inch |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM31CR61C226KE15L Datasheet
Download the complete datasheet for Murata GRM31CR61C226KE15L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

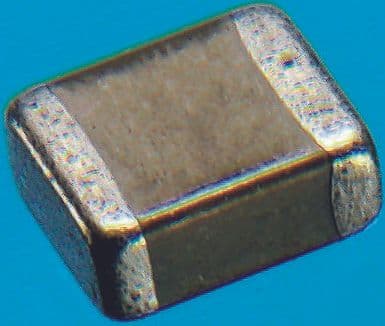

Product Images
