10µF, 10V multilayer ceramic capacitor with Y5V dielectric. Features a 1206 (3216 metric) SMD/SMT package, measuring 3.2mm x 1.6mm x 1.15mm. Operating temperature range is -30°C to 85°C with an 80% tolerance. This lead-free, RoHS-compliant component is supplied on tape and reel.
Package1206
Voltage10V
Capacitance10uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Murata GRM31MF51A106ZA01L technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric
Y5V
Dielectric Material
Ceramic
Height
1.15mm
Lead Free
Lead Free
Length
3.2mm
Material
Ceramic
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.049inch
Tolerance
80%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM31MF51A106ZA01L Datasheet
Download the complete datasheet for Murata GRM31MF51A106ZA01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

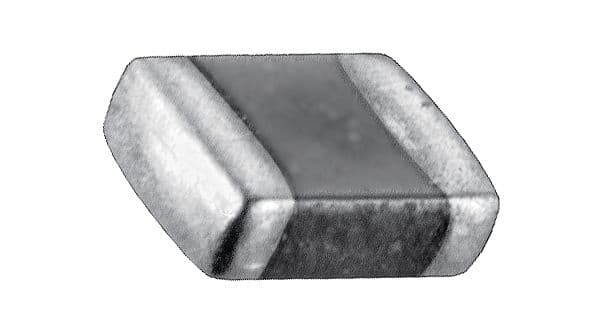

Product Images
