Multilayer Ceramic Capacitor (MLCC) with 220nF capacitance and 200V DC rating. Features X7R dielectric, 10% tolerance, and operates from -55°C to 125°C. Surface mountable in a 1210 (3225 metric) case code, this component is supplied on tape and reel.
Package1210
Capacitance220nF
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM32DR72D224KW01L technical specifications.
General
| Capacitance | 220nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Dielectric | X7R |
| Height | 2mm |
| Length | 0.126inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.091inch |
| Tolerance | 10% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Weight | 0.00388oz |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM32DR72D224KW01L Datasheet
Download the complete datasheet for Murata GRM32DR72D224KW01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

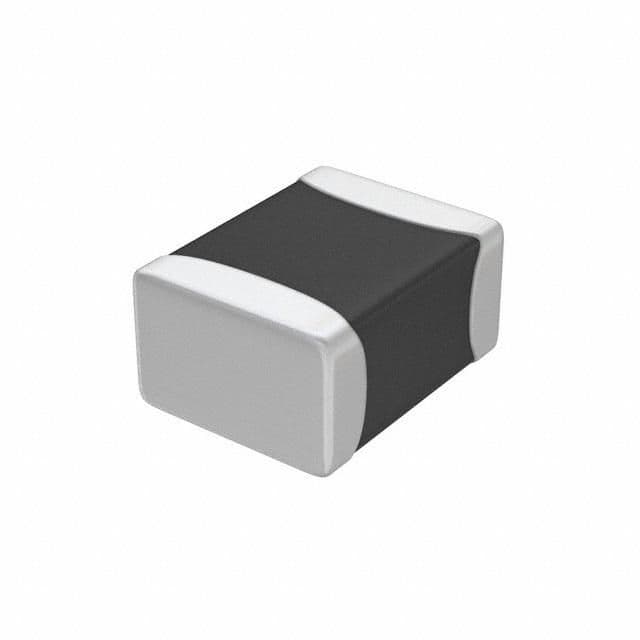

Product Images
