Multilayer Ceramic Capacitor (MLCC) with 47nF capacitance and 630V DC rated voltage. Features X7R dielectric, 10% tolerance, and a 1210 (3225 metric) SMD/SMT case code. Operates from -55°C to 125°C with a flat construction and lead-free termination. Packaged in tape and reel for surface mounting.
Package1210
Voltage630V
Capacitance47nF
Voltage Rating630V
Quick Jump:
Technical Specifications
Murata GRM32DR72J473KW01L technical specifications.
General
Capacitance
47nF
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Construction
Flat
Depth
2.5mm
Dielectric
X7R
Height
2mm
Lead Free
Lead Free
Length
3.2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.087inch
Tolerance
10%
Voltage
630V
Voltage Rating
630V
DC Rated Voltage
630V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Murata GRM32DR72J473KW01L Datasheet
Download the complete datasheet for Murata GRM32DR72J473KW01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

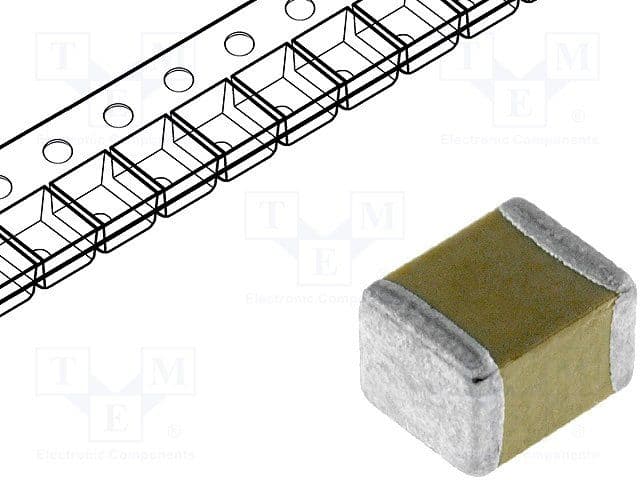

Product Images
