Multilayer Ceramic Capacitor (MLCC) with 220nF capacitance and 50V DC rating. Features X7R dielectric, 10% tolerance, and a 1210 (3225 metric) SMD/SMT case code. Operates from -55°C to 125°C, constructed with ceramic material and lead-free termination. Packaged in tape and reel for surface mounting.
Package1210
Capacitance220nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM32NR71H224KA01L technical specifications.
General
| Capacitance | 220nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Height | 1.35mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.059inch |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM32NR71H224KA01L Datasheet
Download the complete datasheet for Murata GRM32NR71H224KA01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

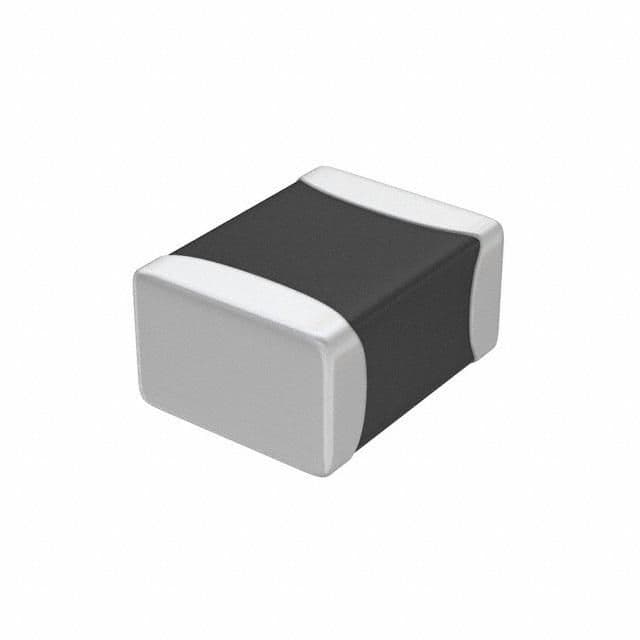

Product Images
