General purpose, air-core, surface mount inductor with 33nH inductance and 5% tolerance. Features a 0402 (1005 metric) case size, 200mA DC current rating, and 670mΩ DC resistance. Operating temperature range is -55°C to 125°C, with a self-resonant frequency of 1.5GHz. Unshielded, monolithic construction.
Package0402
Current Rating200mA
MountingSurface Mount
Inductance33nH
Quick Jump:
Technical Specifications
Murata LQG15HN33NJ02D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Air
Current Rating
200mA
DC Current
200mA
DC Resistance (DCR)
670mR
Depth
0.55mm
Height
0.5mm
Height - Seated (Max)
0.022inch
Inductance
33nH
Inductance Tolerance
5%
Inductor Type
MONOLITHIC
Lead Free
Lead Free
Length
1.05mm
Max DC Current
200mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
8
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
300mA
RoHS Compliant
Yes
Self Resonant Frequency
1.5GHz
Series
LQG15HS
Series Resistance
670mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
2.3E-05oz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQG15HN33NJ02D Datasheet
Download the complete datasheet for Murata LQG15HN33NJ02D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

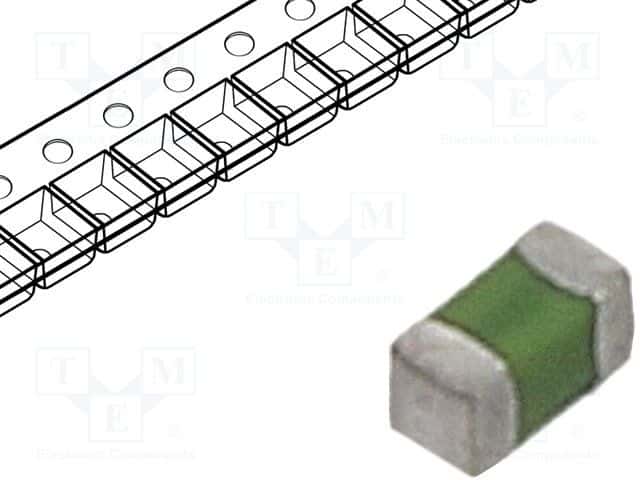

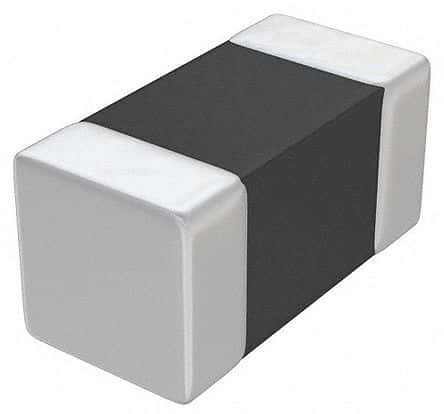

Product Images
