Murata
LQH2MCN150K02B

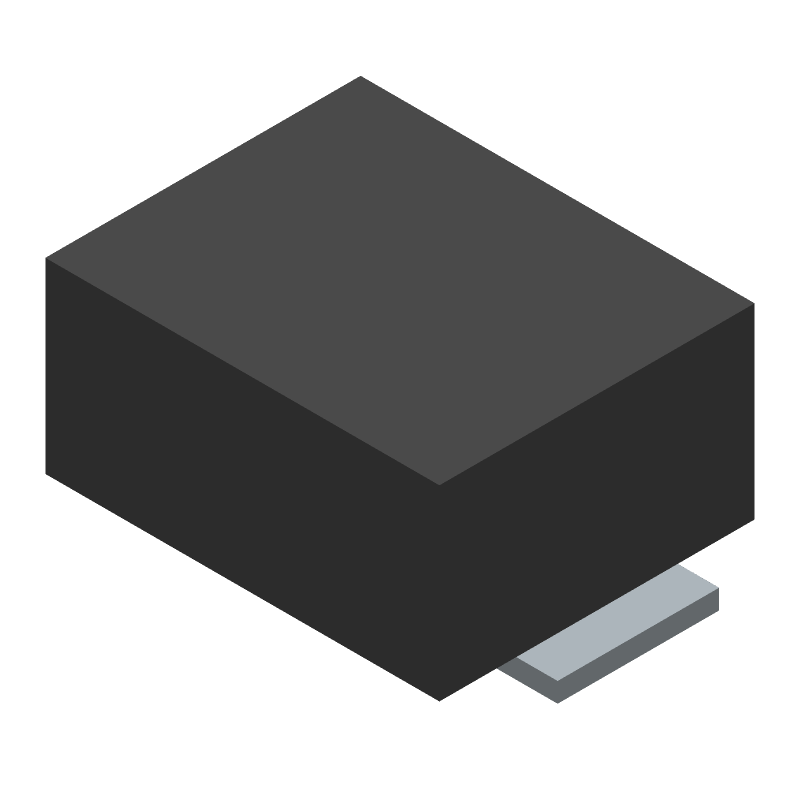

Inductor Power Chip Unshielded Wirewound 15uH 10% 1MHz Ferrite 0.2A 2.08Ohm DCR 0806 Bulk
Quick Jump:
Technical Specifications
Murata LQH2MCN150K02B technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 2 |
| Tolerance | 10 |
| Package Width | 1.6 |
| Package Height | 0.9 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 15 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 2.08 |
| Rated Current-Max | 0.2 |
| Test Frequency | 1 |
| Self Resonance Frequency | 40 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQH2MCN150K02B Datasheet
Download the complete datasheet for Murata LQH2MCN150K02B to view detailed technical specifications.
No datasheet is available for this part.
