Surface mount wirewound fixed inductor with 220µH inductance and 10% tolerance. Features a ferrite core, 70mA DC current rating, and 8.4Ω DCR. Operates from -40°C to 85°C and is packaged in a 1210 (3225 metric) case. This unshielded power chip inductor is RoHS compliant and supplied on tape and reel.
Package1210
Current Rating70mA
MountingSurface Mount
Inductance220uH
Quick Jump:
Technical Specifications
Murata LQH32CN221K23L technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Core Material
Ferrite
Current Rating
70mA
DC Current
70mA
DC Resistance (DCR)
8.4R
Depth
2.7mm
Height
0.061inch
Inductance
220uH
Inductance Tolerance
10%
Inductor Type
Wirewound
Lead Free
Lead Free
Length
3.5mm
Max DC Current
70mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
40
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
70mA
RoHS Compliant
Yes
Self Resonant Frequency
6.8MHz
Series
LQH32C_23
Series Resistance
10.92R
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
1MHz
Tolerance
10%
Weight
0.002116oz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Murata LQH32CN221K23L Datasheet
Download the complete datasheet for Murata LQH32CN221K23L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

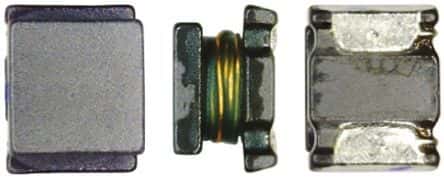

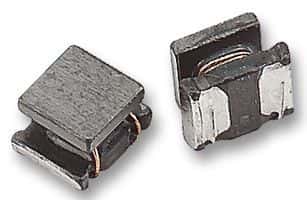

Product Images
