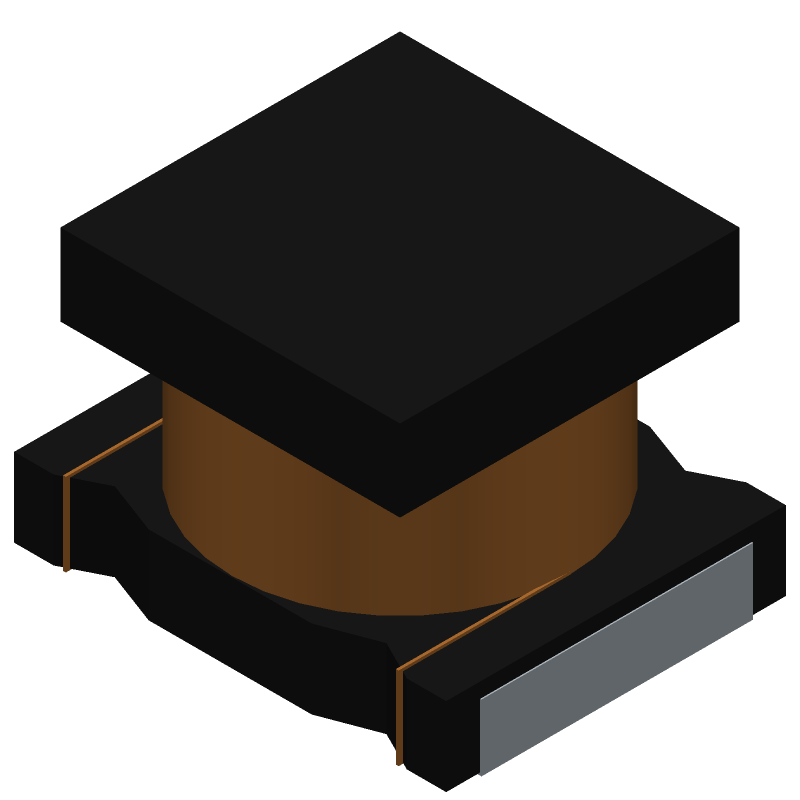

The LQH32MN470J23K is a 47uH general purpose RF inductor from Murata. It has a maximum operating temperature of 85C and a minimum operating temperature of -40C. The inductor is rated for a maximum current of 0.1A and has a DC resistance of 4.3 ohms. It is a dual-ended, shielded inductor with a self-resonance frequency of 11 MHz and a quality factor of at least 40 at its nominal inductance. The inductor is available in a 1210 surface mount package.
Quick Jump:
Technical Specifications
Murata LQH32MN470J23K technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 3.2 |
| Tolerance | 5 |
| Package Width | 2.5 |
| Package Height | 2 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 47 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 4.3 |
| Rated Current-Max | 0.1 |
| Test Frequency | 1 |
| Self Resonance Frequency | 11 |
| Quality Factor-Min (at L-nom) | 40 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQH32MN470J23K Datasheet
Download the complete datasheet for Murata LQH32MN470J23K to view detailed technical specifications.
No datasheet is available for this part.
