Murata
LQP02HQ1N7W02E

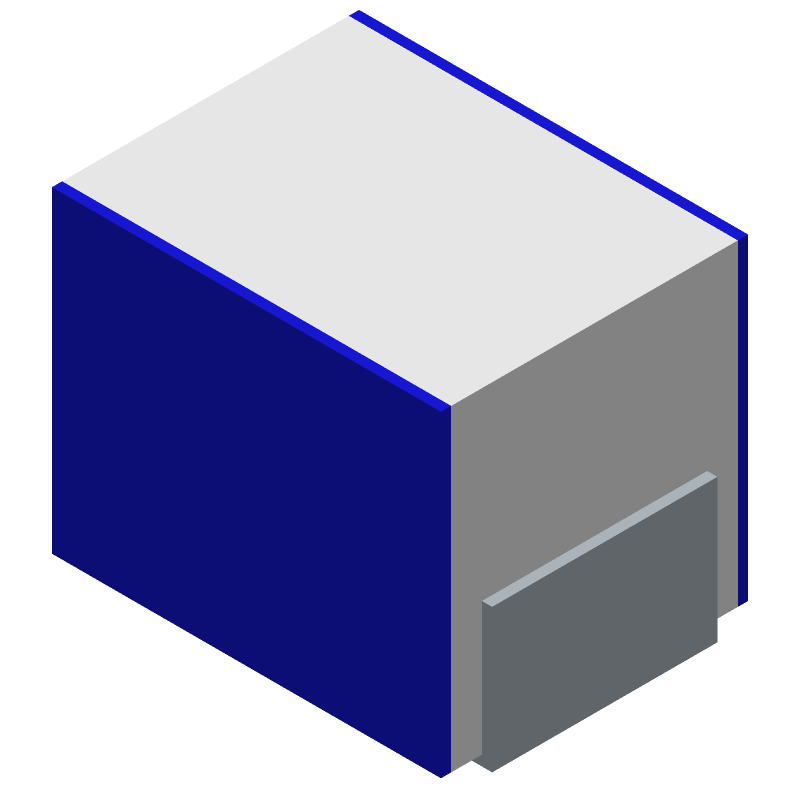

Inductor High Frequency Chip Unshielded Thin Film 0.0017uH 0.05nH 500MHz 14Q-Factor 0.7A 0.08Ohm DCR 01005
Quick Jump:
Technical Specifications
Murata LQP02HQ1N7W02E technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 0.4 |
| Tolerance | 2.941 |
| Package Width | 0.2 |
| Package Height | 0.3 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.0017 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.08 |
| Rated Current-Max | 0.7 |
| Test Frequency | 500 |
| Self Resonance Frequency | 10700 |
| Quality Factor-Min (at L-nom) | 14 |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQP02HQ1N7W02E Datasheet
Download the complete datasheet for Murata LQP02HQ1N7W02E to view detailed technical specifications.
No datasheet is available for this part.
