Murata
LQP03TN51NJZ2D

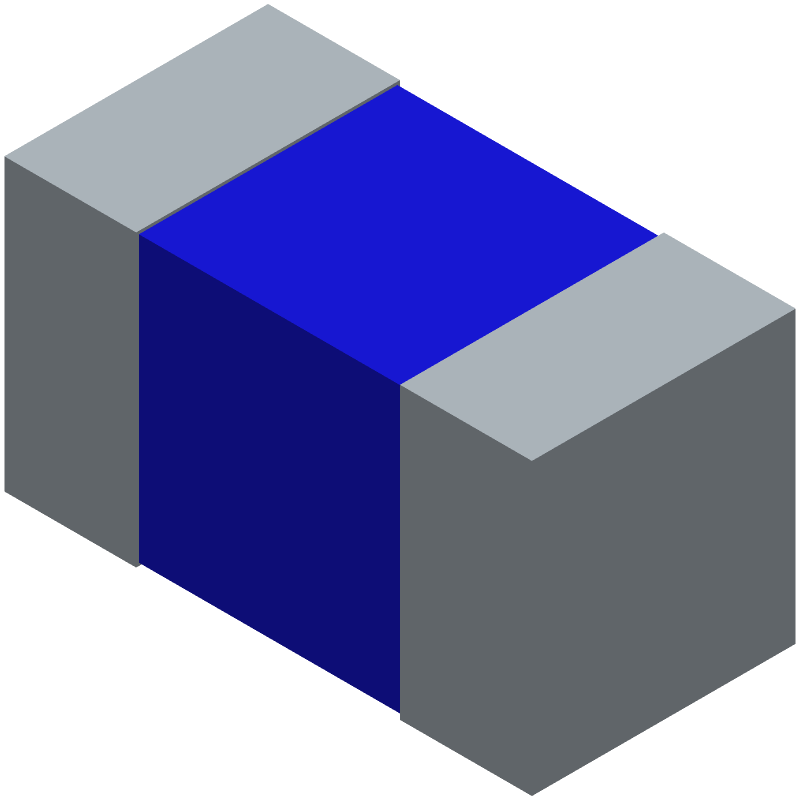

Inductor RF Chip Unshielded Thin Film 0.051uH 5% 300MHz 9Q-Factor Non Magnetic 0.1A 3.9Ohm DCR 0201 Automotive T/R
Quick Jump:
Technical Specifications
Murata LQP03TN51NJZ2D technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 0.6 |
| Tolerance | 5 |
| Package Width | 0.3 |
| Package Height | 1.1 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.051 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 3.9 |
| Rated Current-Max | 0.1 |
| Test Frequency | 300 |
| Self Resonance Frequency | 1200 |
| Quality Factor-Min (at L-nom) | 9 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQP03TN51NJZ2D Datasheet
Download the complete datasheet for Murata LQP03TN51NJZ2D to view detailed technical specifications.
No datasheet is available for this part.
