Murata
LQP03TQ3N5C02D

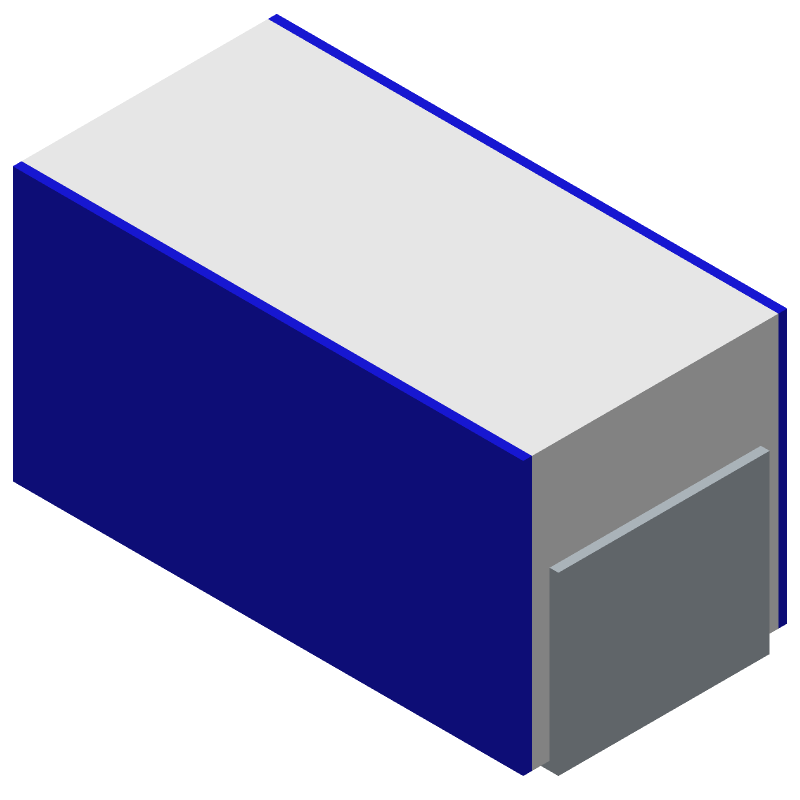

Inductor High Frequency Chip Unshielded Thin Film 0.0035uH 0.2nH 500MHz 17Q-Factor Non Magnetic 0.45A 0.25Ohm DCR 0201 T/R
Quick Jump:
Technical Specifications
Murata LQP03TQ3N5C02D technical specifications.
General
Max Operating Temperature
125
Number of Terminals
2
Min Operating Temperature
-55
Number of Functions
1
Package Length
0.6
Tolerance
5.714
Package Width
0.3
Package Height
0.5
Terminal Placement
DUAL ENDED
Inductance-Nom (L)
0.0035
Inductor Type
GENERAL PURPOSE INDUCTOR
Shielded
NO
Inductor Application
RF INDUCTOR
DC Resistance
0.25
Rated Current-Max
0.45
Test Frequency
500
Self Resonance Frequency
8000
Quality Factor-Min (at L-nom)
17
Compliance
RoHS
Yes
Eccn Code
EAR99
HTS Code
8504.50.80.00
REACH
Compliant
Military Spec
False
Datasheet
Murata LQP03TQ3N5C02D Datasheet
Download the complete datasheet for Murata LQP03TQ3N5C02D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
