Murata
LQW04AN9N4D00D

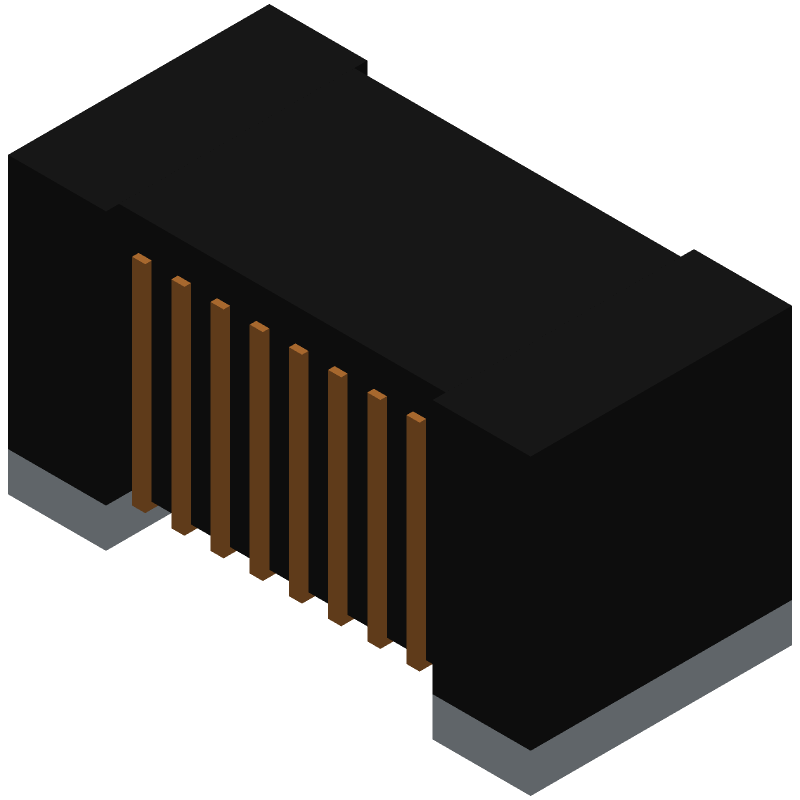

Inductor RF Chip Unshielded Wirewound 0.0094uH 0.5nH 100MHz 20Q-Factor Non Magnetic 0.33A 0.26Ohm DCR 03015 T/R
Quick Jump:
Technical Specifications
Murata LQW04AN9N4D00D technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 0.8 |
| Tolerance | 5.319 |
| Package Width | 0.4 |
| Package Height | 0.85 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.0094 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.26 |
| Rated Current-Max | 0.33 |
| Test Frequency | 100 |
| Self Resonance Frequency | 7000 |
| Quality Factor-Min (at L-nom) | 20 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQW04AN9N4D00D Datasheet
Download the complete datasheet for Murata LQW04AN9N4D00D to view detailed technical specifications.
No datasheet is available for this part.
