Surface mount general purpose inductor with 18nH inductance and 3% tolerance. Features a 0402 (1005 metric) case size, 270mR DC resistance, and a rated current of 370mA. Operates across a temperature range of -55°C to 125°C with a self-resonant frequency of 4.5GHz. This unshielded, alumina-core component is RoHS compliant and packaged on tape and reel.
Package0402
Current280mA
Current Rating370mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata LQW15AN18NH00D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Non-Magnetic, Air, Ferrite
Current
280mA
Current Rating
370mA
DC Current
370mA
DC Resistance (DCR)
270mR
Depth
0.7mm
Height
0.5mm
Height - Seated (Max)
0.024inch
Inductance
18nH
Lead Free
Lead Free
Length
1mm
Max DC Current
370mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
25
Radiation Hardening
No
Rated Current-Max
370mA
RoHS Compliant
Yes
Self Resonant Frequency
4.5GHz
Series
LQW15A_00
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
3%
Weight
2.8E-05oz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW15AN18NH00D Datasheet
Download the complete datasheet for Murata LQW15AN18NH00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

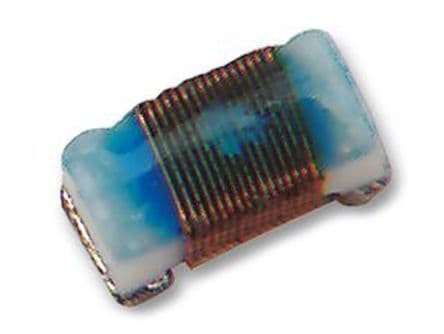

Product Images
