Surface mount general purpose inductor with 33nH inductance and 5% tolerance. Features a 0402 (1005 metric) case size, alumina core, and 260mA rated current. Operates from -55°C to 125°C with a self-resonant frequency of 3.2GHz. Unshielded design with low DC resistance of 630mR.
Package0402
Current Rating260mA
MountingSurface Mount
Inductance33nH
Quick Jump:
Technical Specifications
Murata LQW15AN33NJ00D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Air, Non-Magnetic, Ferrite
Current Rating
260mA
DC Current
260mA
DC Resistance (DCR)
630mR
Depth
0.6mm
Height
0.5mm
Inductance
33nH
Lead Free
Lead Free
Length
1mm
Max DC Current
260mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
25
Radiation Hardening
No
Rated Current-Max
260mA
RMS Current (Irms)
260mA
RoHS Compliant
Yes
Self Resonant Frequency
3.2GHz
Series
LQW15A_00
Series Resistance
630mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
2.8E-05oz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW15AN33NJ00D Datasheet
Download the complete datasheet for Murata LQW15AN33NJ00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

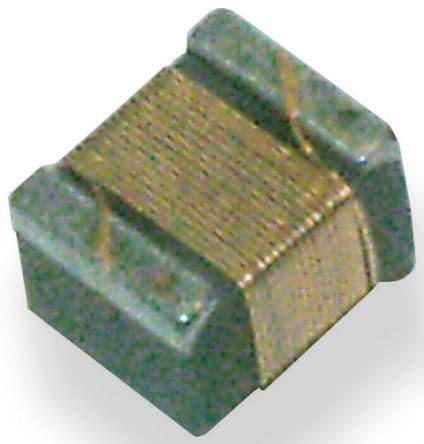

Product Images
