Surface mount general purpose inductor featuring 3.9nH inductance and 750mA DC current rating. This 0402 (1005 metric) case size component offers a low DC resistance of 70mR and a high self-resonant frequency of 10GHz. Operating across a wide temperature range of -55°C to 125°C, it is RoHS compliant and unshielded.
Package0402
Current750mA
MountingSurface Mount
Inductance3.9nH
Quick Jump:
Technical Specifications
Murata LQW15AN3N9B00D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Non-Magnetic, Air, Ferrite
Current
750mA
DC Current
750mA
DC Resistance (DCR)
70mR
Depth
0.7mm
Height
0.5mm
Inductance
3.9nH
Lead Free
Lead Free
Length
1mm
Max DC Current
750mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
10GHz
Series
LQW15A_00
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Weight
2.8E-05oz
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata LQW15AN3N9B00D Datasheet
Download the complete datasheet for Murata LQW15AN3N9B00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

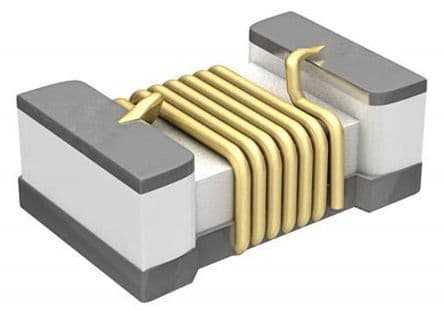

Product Images
