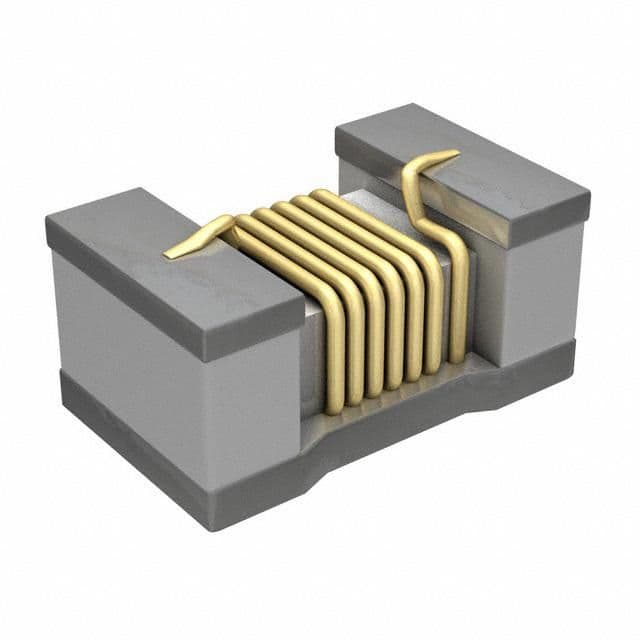

Surface mount general purpose inductor with 3.9nH inductance and 3% tolerance. Features a 0402 (1005 metric) case size, unshielded construction, and an alumina core. Rated for a maximum DC current of 750mA with a DC resistance of 70mR. Operates across a temperature range of -55°C to 125°C and boasts a self-resonant frequency of 10GHz.
Package0402
Current200mA
Current Rating750mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata LQW15AN3N9C00D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Non-Magnetic, Air, Ferrite
Current
200mA
Current Rating
750mA
DC Current
750mA
DC Resistance (DCR)
70mR
Depth
0.7mm
Height
0.5mm
Height - Seated (Max)
0.024inch
Inductance
3.9nH
Lead Free
Lead Free
Length
1mm
Max DC Current
750mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
25
Radiation Hardening
No
Rated Current-Max
750mA
RoHS Compliant
Yes
Self Resonant Frequency
10GHz
Series
LQW15A_00
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
3%
Weight
2.8E-05oz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW15AN3N9C00D Datasheet
Download the complete datasheet for Murata LQW15AN3N9C00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
