SMD general purpose inductor featuring 7.5nH inductance with 2% tolerance. This unshielded, alumina-core chip inductor operates with a rated current of 570mA and a DC resistance of 130mR. Designed for surface mounting in a 0402 (1005 metric) case, it offers a wide operating temperature range from -55°C to 125°C and a self-resonant frequency of 6GHz.
Package0402
Current540mA
MountingSurface Mount
Inductance7.5nH
Quick Jump:
Technical Specifications
Murata LQW15AN7N5G00D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Non-Magnetic, Air, Ferrite
Current
540mA
DC Current
570mA
DC Resistance (DCR)
130mR
Depth
0.7mm
Height
0.5mm
Inductance
7.5nH
Inductance Tolerance
2%
Lead Free
Lead Free
Length
1mm
Max DC Current
570mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
25
Radiation Hardening
No
Rated Current-Max
570mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
6GHz
Series
LQW15A_00
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
2%
Weight
2.8E-05oz
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata LQW15AN7N5G00D Datasheet
Download the complete datasheet for Murata LQW15AN7N5G00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

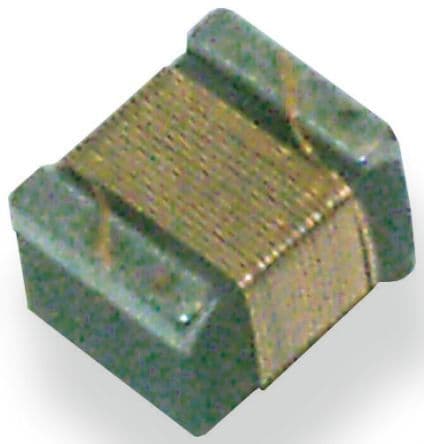

Product Images
