General purpose surface mount inductor with 82nH inductance and 2% tolerance. Features a 0603 case size, 250mA DC current rating, and 600mR DC resistance. Operating temperature range is -55°C to 125°C, with a self-resonant frequency of 2GHz. Unshielded, non-magnetic core construction.
Package0603
Current550mA
Current Rating250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata LQW18AN82NG00D technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Non-Magnetic
Current
550mA
Current Rating
250mA
DC Current
250mA
DC Resistance (DCR)
600mR
Depth
1mm
Height
0.8mm
Height - Seated (Max)
0.039inch
Inductance
82nH
Inductance Tolerance
2%
Lead Free
Lead Free
Length
1.6mm
Max DC Current
250mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
34
Rated Current-Max
250mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
2GHz
Series
LQW18A_00
Series Resistance
600mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
2%
Weight
0.000106oz
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW18AN82NG00D Datasheet
Download the complete datasheet for Murata LQW18AN82NG00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

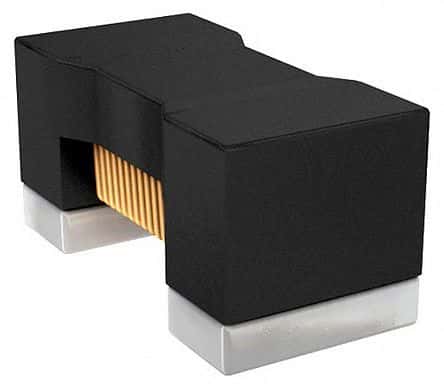

Product Images
