Surface mount wirewound RF chip inductor with 160nH inductance and 2% tolerance, designed for high-frequency applications with a Q factor of 32 at 100MHz and a self-resonant frequency of 1.35GHz. Features a 0603 (1608 metric) case size, non-magnetic ferrite core, and a maximum DC current rating of 150mA with a DC resistance of 2.1 Ohms. Operates across a wide temperature range of -55°C to 125°C and is supplied in tape and reel packaging.
Package0603
Current Rating150mA
MountingSurface Mount
Inductance160nH
Quick Jump:
Technical Specifications
Murata LQW18ANR16G00D technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Non-Magnetic, Ferrite
Current Rating
150mA
DC Current
150mA
DC Resistance (DCR)
2.1R
Depth
1mm
Height
0.8mm
Height - Seated (Max)
0.039inch
Inductance
160nH
Inductance Tolerance
2%
Length
1.6mm
Max DC Current
150mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
32
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
150mA
RoHS Compliant
Yes
Self Resonant Frequency
1.35GHz
Series
LQW18A_00
Series Resistance
2.1R
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
2%
Weight
0.000106oz
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW18ANR16G00D Datasheet
Download the complete datasheet for Murata LQW18ANR16G00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

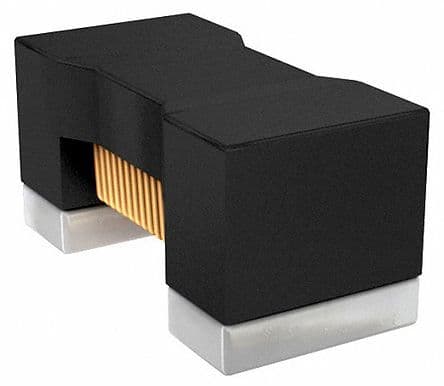

Product Images
