Murata
LQW18ANR20G0ZD

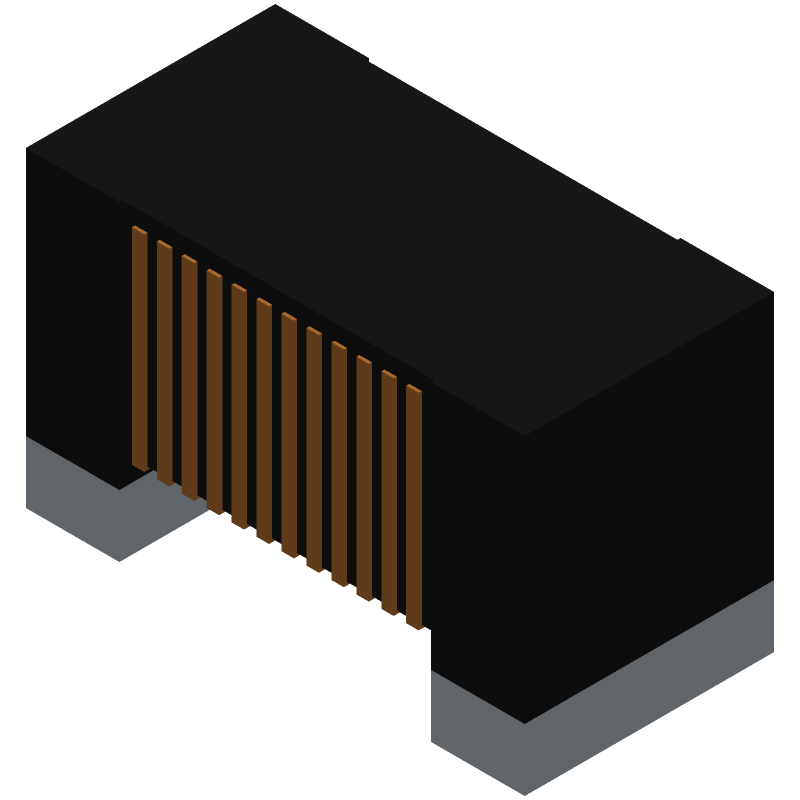

Inductor RF Chip Unshielded Wirewound 0.2uH 2% 100MHz 25Q-Factor Non Magnetic 0.12A 2.4Ohm DCR 0603 Automotive T/R
Quick Jump:
Technical Specifications
Murata LQW18ANR20G0ZD technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 1.6 |
| Tolerance | 2 |
| Package Width | 0.8 |
| Package Height | 0.85 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.2 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 2.4 |
| Rated Current-Max | 0.12 |
| Test Frequency | 100 |
| Self Resonance Frequency | 1250 |
| Quality Factor-Min (at L-nom) | 25 |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQW18ANR20G0ZD Datasheet
Download the complete datasheet for Murata LQW18ANR20G0ZD to view detailed technical specifications.
No datasheet is available for this part.
