Surface mount wirewound RF chip inductor offering 68nH inductance with a 5% tolerance. Features a non-magnetic, air core and unshielded construction. Rated for 460mA DC current with a low 230mΩ DC resistance. Operates across a -40°C to 85°C temperature range and boasts a Q factor of 40 at 100MHz. Packaged in an 0805 (2012 metric) case, supplied on tape and reel.
Package0805
Current Rating460mA
MountingSurface Mount
Inductance68nH
Quick Jump:
Technical Specifications
Murata LQW2BHN68NJ03L technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Non-Magnetic, Air
Current Rating
460mA
DC Current
460mA
DC Resistance (DCR)
230mR
Depth
1.7mm
Height
1.7mm
Height - Seated (Max)
0.07inch
Inductance
68nH
Length
2.2mm
Max DC Current
460mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Q Factor
40
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
1.2GHz
Series
LQW2BHN_03
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
0.000317oz
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW2BHN68NJ03L Datasheet
Download the complete datasheet for Murata LQW2BHN68NJ03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

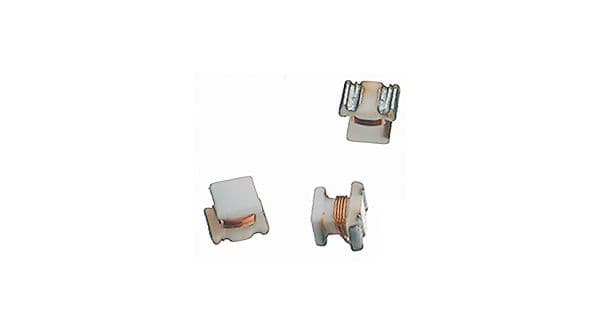

Product Images
