Surface mount fixed inductor featuring 100nH inductance with a 5% tolerance, tested at 100MHz. This unshielded wirewound component offers a Q factor of 40 and a rated current of 350mA. It operates within a temperature range of -40°C to 85°C and has a DC resistance of 380mΩ. The 0805 case size (2012 metric) utilizes a non-magnetic, air core and is supplied on tape and reel.
Package0805
Current Rating350mA
MountingSurface Mount
Inductance100nH
Quick Jump:
Technical Specifications
Murata LQW2BHNR10J03L technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Non-Magnetic, Air
Current Rating
350mA
DC Current
350mA
DC Resistance (DCR)
380mR
Depth
1.7mm
Height
1.7mm
Height - Seated (Max)
0.07inch
Inductance
100nH
Lead Free
Lead Free
Length
2.2mm
Max DC Current
350mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Q Factor
40
Radiation Hardening
No
Rated Current-Max
350mA
RoHS Compliant
Yes
Self Resonant Frequency
900MHz
Series
LQW2BHN_03
Series Resistance
380mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
0.000317oz
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW2BHNR10J03L Datasheet
Download the complete datasheet for Murata LQW2BHNR10J03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

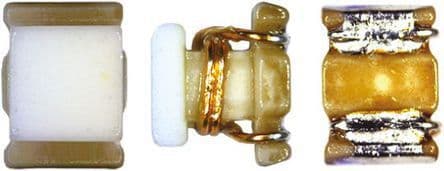

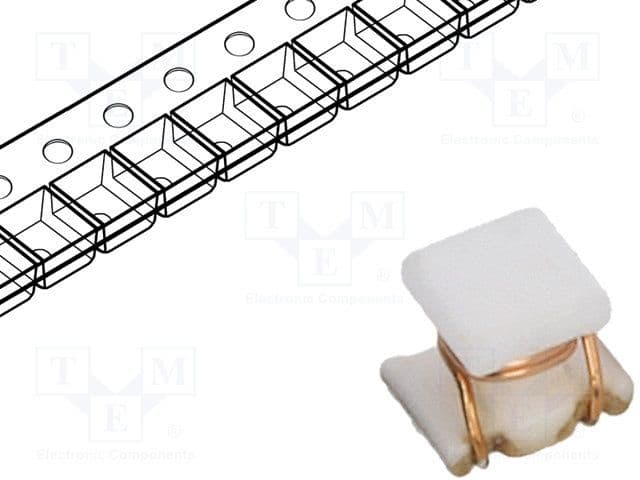

Product Images
