Surface mount wirewound RF chip inductor featuring 0.12µH inductance with a 5% tolerance, tested at 100MHz. This unshielded component utilizes a non-magnetic, air core and offers a Q factor of 40 at 100MHz. It supports a maximum DC current of 320mA with a DC resistance of 400mΩ. The 0805 case size (2012 metric) is provided in tape and reel packaging.
Package0805
Current Rating320mA
MountingSurface Mount
Inductance120nH
Quick Jump:
Technical Specifications
Murata LQW2BHNR12J03L technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Non-Magnetic, Air
Current Rating
320mA
DC Current
320mA
DC Resistance (DCR)
400mR
Depth
1.7mm
Height
1.7mm
Height - Seated (Max)
0.07inch
Inductance
120nH
Length
0.079inch
Max DC Current
320mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Q Factor
40
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
750MHz
Series
LQW2BHN_03
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
0.000317oz
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW2BHNR12J03L Datasheet
Download the complete datasheet for Murata LQW2BHNR12J03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

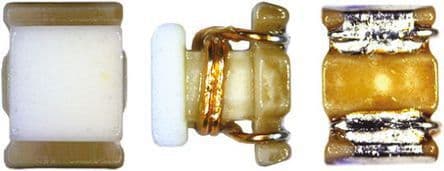

Product Images
