Murata
LQW2UAS1R5J0CL

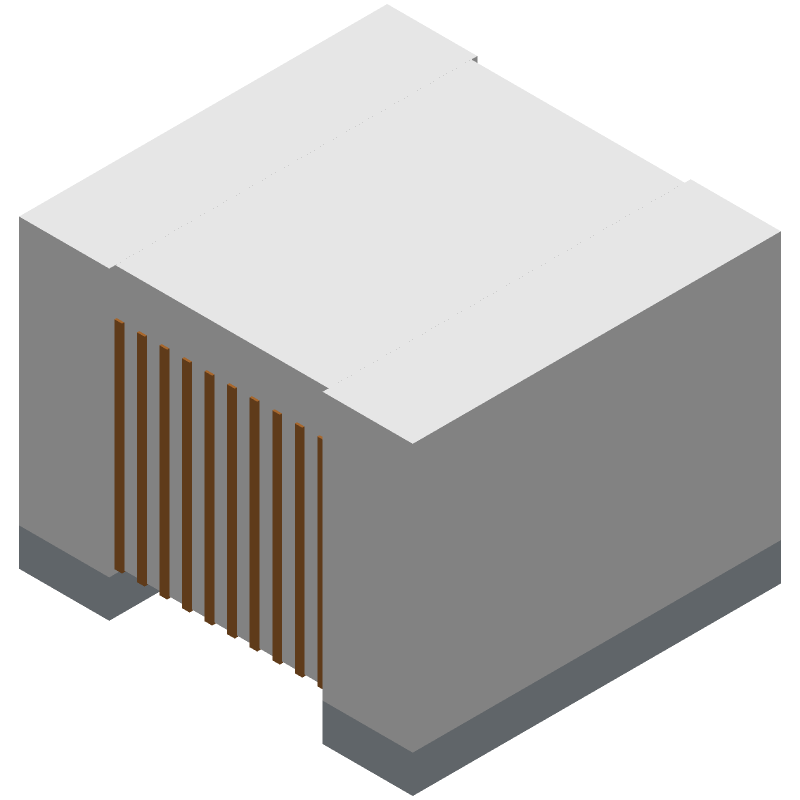

Inductor RF Chip Unshielded Wirewound 1.5uH 5% 7.9MHz 28Q-Factor Non Magnetic 0.33A 2.3Ohm DCR 1008 T/R
Quick Jump:
Technical Specifications
Murata LQW2UAS1R5J0CL technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Tolerance | 5 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 1.5 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 2.3 |
| Rated Current-Max | 0.33 |
| Test Frequency | 7.9 |
| Self Resonance Frequency | 120 |
| Quality Factor-Min (at L-nom) | 28 |
Compliance
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQW2UAS1R5J0CL Datasheet
Download the complete datasheet for Murata LQW2UAS1R5J0CL to view detailed technical specifications.
No datasheet is available for this part.
