Board mount DC-DC converter, 1W output power, featuring dual isolated outputs of 15V and -15V, each with 33mA current capability. Operates from a 10.8V to 13.2V DC input, with a nominal input of 12V. Achieves 88.5% efficiency and provides 3kV isolation. Housed in a DIP package for through-hole mounting, with dimensions of 19.7mm x 10mm x 7mm. Operating temperature range is -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata MEV1D1215DC technical specifications.
General
Package/Case
DIP
Current - Output 1
33mA
Current - Output 2
-33mA
Depth
19.7mm
Efficiency
88.5%
Height
7mm
Isolation
Isolated
Isolation Voltage
3kV
Length
19.7mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
33mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
12V
Nominal Output Voltage
-15V
Number of Outputs
2
Operating Supply Voltage
12V
Output Current
33mA
Output Power
1W
Output Voltage
15V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MEV1 (1W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Murata MEV1D1215DC Datasheet
Download the complete datasheet for Murata MEV1D1215DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

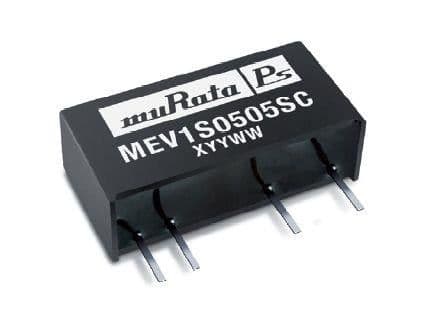

Product Images
