Board mount DC-DC converter, 1W output power, featuring dual isolated outputs of 12V and -12V, each with 42mA current capability. Operates from a 21.6V to 26.4V DC input, with a nominal input of 24V. Achieves 88% efficiency and provides 3kV isolation. Housed in a DIP package for through-hole mounting, with dimensions of 19.7mm (L) x 10mm (W) x 7mm (H).
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata MEV1D2412DC technical specifications.
General
Package/Case
DIP
Current - Output 1
42mA
Current - Output 2
-42mA
Depth
19.7mm
Efficiency
88%
Height
7mm
Isolation
Isolated
Isolation Voltage
3kV
Length
19.7mm
Max Input Voltage (DC)
26.4V
Min Input Voltage (DC)
21.6V
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
24V
Nominal Output Voltage
-12V
Number of Outputs
2
Operating Supply Voltage
24V
Output Current
42mA
Output Power
1W
Output Voltage
12V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MEV1
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
2.6g
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Murata MEV1D2412DC Datasheet
Download the complete datasheet for Murata MEV1D2412DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

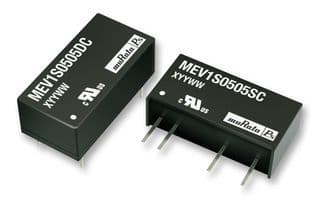

Product Images
