Isolated DC-DC regulated power supply module, 1W, SIP package, featuring dual outputs of 5V and -5V, each with 100mA current capability. Operating from a 43.2V to 52.8V DC input range with a nominal 48V, this hybrid converter offers 3kV isolation and 80% efficiency. Designed for through-hole mounting, it operates across a -40°C to 85°C temperature range.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata MEV1D4805SC technical specifications.
General
Package/Case
SIP
Current - Output 1
100mA
Current - Output 2
-100mA
Depth
6.15mm
Efficiency
80%
Height
10.15mm
Isolation
Isolated
Isolation Voltage
3kV
Length
0.78inch
Max Input Voltage (DC)
52.8V
Min Input Voltage (DC)
43.2V
Max Input Voltage
52.8V
Min Input Voltage
43.2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
48V
Nominal Output Voltage
-5V
Number of Outputs
2
Operating Supply Voltage
48V
Output Current
100mA
Output Power
1W
Output Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MEV1
Voltage - Output 1
5V
Voltage - Output 2
-5V
Width
19.65mm
Compliance
RoHS
Compliant
Datasheet
Murata MEV1D4805SC Datasheet
Download the complete datasheet for Murata MEV1D4805SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

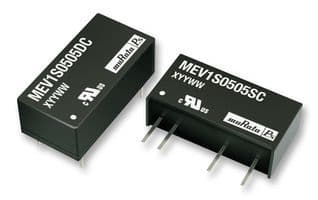

Product Images
