1W DC-DC regulated power supply module featuring a single 9V output at 111mA. This hybrid, board-mount converter operates within a 10.8V to 13.2V DC input range, achieving 86% efficiency. It offers 3kV isolation and is housed in a DIP package for through-hole mounting. Operating temperature range is -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata MEV1S1209DC technical specifications.
General
Package/Case
DIP
Current - Output 1
111mA
Depth
19.7mm
Efficiency
86%
Height
7mm
Isolation Voltage
3kV
Length
0.77inch
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
111mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
12V
Nominal Output Voltage
9V
Number of Outputs
1
Output Current
111mA
Output Power
1W
Output Voltage
9V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MEV1
Voltage - Output 1
9V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Murata MEV1S1209DC Datasheet
Download the complete datasheet for Murata MEV1S1209DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

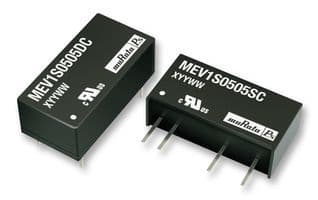

Product Images
