Feed-through ceramic capacitor with 470nF capacitance and 6.3VDC voltage rating. Features a 20% tolerance, 2A current rating, and 30mR DC resistance. Surface mountable in a 0603 (1608 metric) case, operating from -55°C to 125°C. Lead-free and RoHS compliant, packaged on tape and reel.
Package0603
Voltage6.3V
Current2A
Capacitance470nF
Quick Jump:
Technical Specifications
Murata NFM18PC474R0J3D technical specifications.
General
Capacitance
470nF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current
2A
Current Rating
2A
DC Resistance (DCR)
30mR
Depth
0.8mm
Height
0.6mm
Lead Free
Lead Free
Length
1.6mm
Max Current Rating
2A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
6.3V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM18PC
Termination
Flat
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Murata NFM18PC474R0J3D Datasheet
Download the complete datasheet for Murata NFM18PC474R0J3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

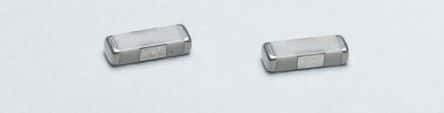

Product Images
