Feed-through ceramic capacitor, 470pF capacitance, 50V DC voltage rating, and 300mA current rating. Features a 1205 (3212 metric) surface mount package with flat termination, operating from -55°C to 125°C. Includes 300mR DC resistance and is RoHS compliant.
Package1205
Voltage50V
Current300mA
Capacitance470pF
Quick Jump:
Technical Specifications
Murata NFM3DCC471R1H3L technical specifications.
General
Capacitance
470pF
Case Code (Imperial)
1205
Case Code (Metric)
3212
Package/Case
1205
Current
300mA
Current Rating
300mA
DC Resistance (DCR)
300mR
Depth
1.25mm
Height
0.7mm
Lead Free
Lead Free
Length
3.2mm
Max Current Rating
300mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
50V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
300mR
RoHS Compliant
Yes
Series
EMIFIL®, NFM3
Termination
Flat
Tolerance
50%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata NFM3DCC471R1H3L Datasheet
Download the complete datasheet for Murata NFM3DCC471R1H3L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

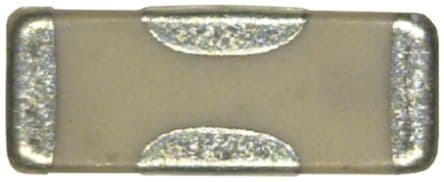

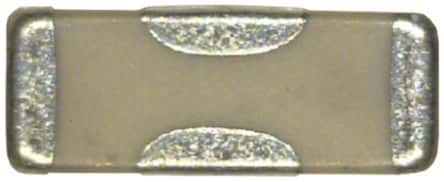

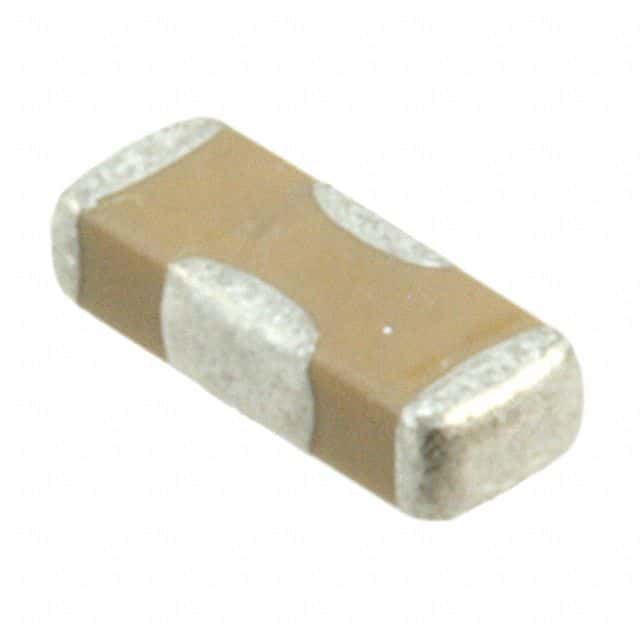

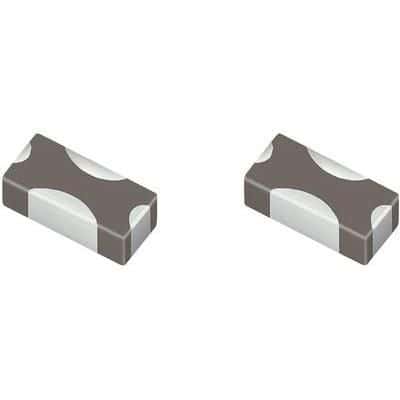

Product Images
