Surface mount feed-through ceramic capacitor with 2.2nF capacitance and 100V DC voltage rating. Features a 300mA current rating, 1806 case code, and operates from -55°C to 125°C. This RoHS compliant component offers a 50% tolerance and is supplied on tape and reel.
Package1806
Voltage100V
Current300mA
Capacitance2.2nF
Quick Jump:
Technical Specifications
Murata NFM41CC222R2A3L technical specifications.
General
Capacitance
2.2nF
Case Code (Imperial)
1806
Case Code (Metric)
4516
Package/Case
1806
Current
300mA
Current Rating
300mA
DC Resistance (DCR)
300mR
Depth
1.6mm
Height
1mm
Lead Free
Lead Free
Length
4.5mm
Max Current Rating
300mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
100V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM41
Termination
Flat
Thickness
1mm
Tolerance
50%
Voltage
100V
Voltage Rating
100V
Voltage Rating (AC)
100V
DC Rated Voltage
100V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Murata NFM41CC222R2A3L Datasheet
Download the complete datasheet for Murata NFM41CC222R2A3L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

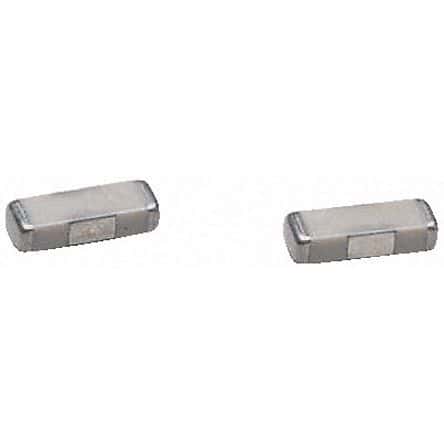

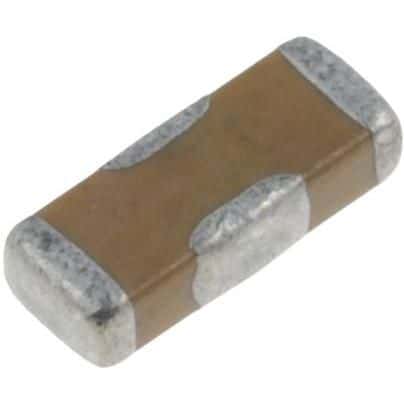

Product Images
