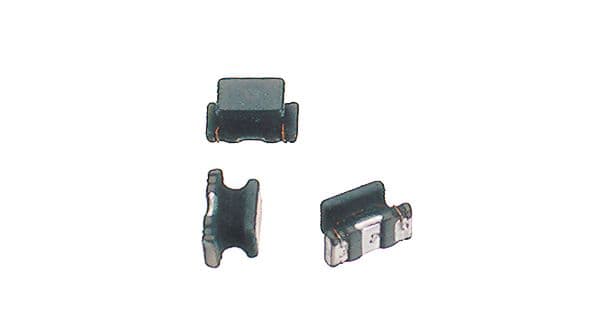

Board mount EMI/RFI filter featuring an LC circuit design for noise suppression. Operates across a frequency range of 10MHz to 30GHz with a maximum attenuation of 30dB. Rated for 200mA current and 25VDC, this surface mount component is housed in a 1206 (3216 metric) package. It offers a flat termination style and is supplied in tape and reel packaging, adhering to RoHS compliance.
Frequency30GHz
Package1206
Current200mA
Voltage Rating25V
Quick Jump:
Technical Specifications
Murata NFW31SP506X1E4L technical specifications.
General
Attenuation Value
10dB
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Circuit Type
Filter
Current
200mA
Current Rating
200mA
Depth
1.6mm
ESD Protection
No
Height
1.8mm
Lead Free
Lead Free
Length
3.2mm
Max Current Rating
200mA
Max Frequency
30GHz
Min Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
25V
Mount
Surface Mount, PCB
Number of Channels
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFW31S
Shielding
Unshielded
Termination
Flat
Voltage Rating
25V
DC Rated Voltage
25V
Weight
0.000353oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Murata NFW31SP506X1E4L Datasheet
Download the complete datasheet for Murata NFW31SP506X1E4L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
