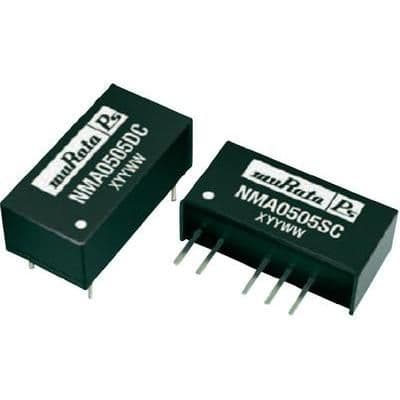

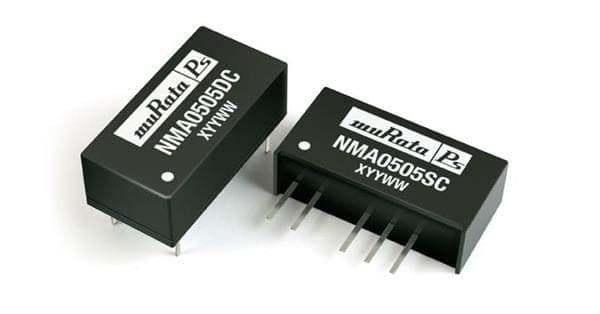

Board mount DC-DC converter module, 1W output power, featuring dual isolated 12V and -12V outputs, each with 42mA current capability. Operates from a 4.5V to 5.5V DC input, with a nominal input of 5V. Achieves 77% efficiency and provides 1kV isolation. Housed in a SIP package with through-hole mounting, measuring 19.5mm x 6mm x 0.39inch. Rated UL94 V-0 for flammability and operates across a -40°C to 85°C temperature range.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata NMA0512SC technical specifications.
General
Package/Case
SIP
Current - Output 1
42mA
Current - Output 2
42mA
Depth
6mm
Efficiency
77%
Flammability Rating
UL94 V-0
Height
0.39inch
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
19.5mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
5V
Number of Outputs
2
Output Current
42mA
Output Power
1W
Output Voltage
12V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
NMA
Voltage - Output 1
12V
Voltage - Output 2
-12V
Width
0.24inch
Compliance
RoHS
Compliant
Datasheet
Murata NMA0512SC Datasheet
Download the complete datasheet for Murata NMA0512SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
